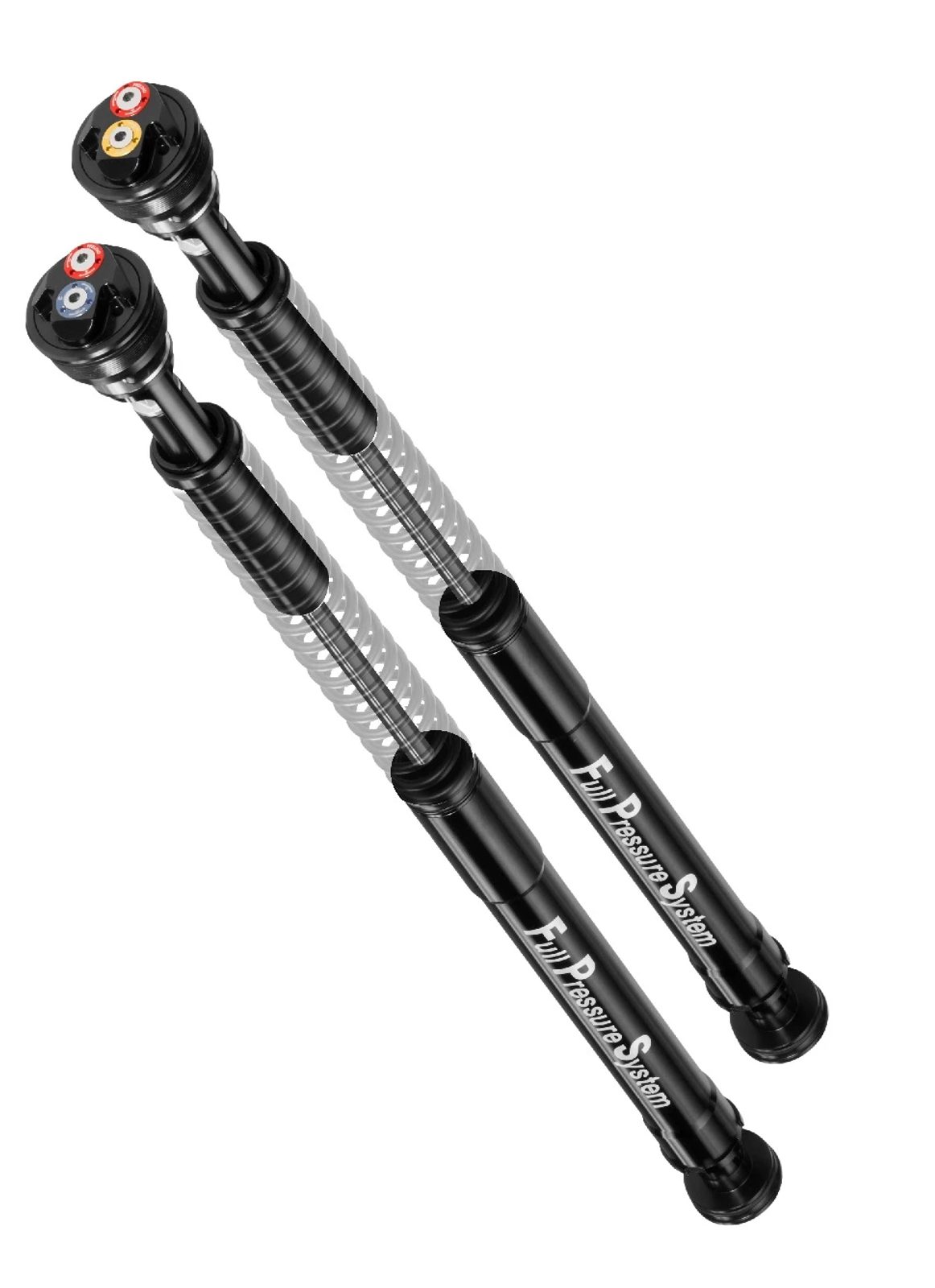

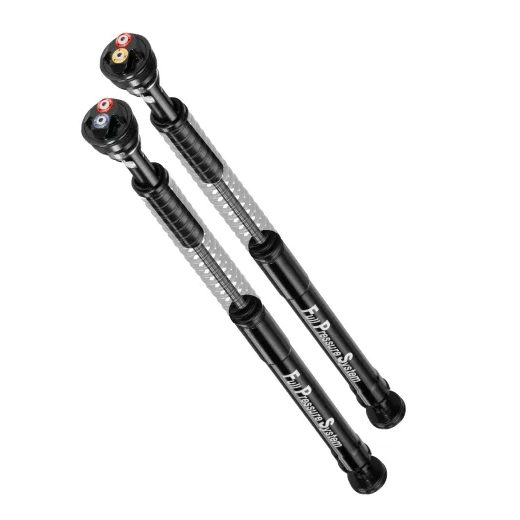

Pressurized cartridge BITUBO adjustable: spring preload, rebound, compression without springs and oil L+20mm

The EBH pressurized cartridge contains a series of innovative systems such as the already known FPS, EC, LC and the new OPC (over pressure control) overpressure control system.
These systems are the result of a long development experience by our R&D department in collaboration with some of the best teams that have participated in the SBK, BSB, IDM and CIV World Championships.
On the top cap there are all the adjustments, spring preload, extension and compression which are separate in the two cartridges, simple and intuitive.
The high damping coefficient at very low speed controls excessive front end dive right from the first moments of braking.

TECHNICAL FEATURES:

• Hydraulic control with FPS system (Bitubo patent) Ergal piston Ø27mm
• Pump rod Ø 10 mm with anti-friction surface coating
• Mechanical bottom with NBR polyurethane pad
• Cr-Si steel springs with heat treatment, bedding process and final shot blasting
• Fork top cap with integrated spring preload adjustment
• Independent adjustment of compression and rebound damping
• Coaxial compensation chamber (Bitubo patent)
• Ergal cartridge body with anti-friction surface coating
• Hydraulic lubrication separate from sliding lubrication
• Pressurization force control system

LC : This product features a high percentage of special light alloys and weight-optimized details, with the aim of achieving the greatest possible lightness.
FPS : Full Pressure System is the most efficient and practical patented system. This innovative damping system provides immediate damping, while avoiding any cavitation of the internal fluid. The system is pressurized with low-pressure gas. The cartridges are asymmetric: one controls the compression, the other the rebound. With two alternating chambers at either end, a high damping force can be created even at very low speeds.

INCLUDED IN THE PACKAGE :
Fitting instructions, including recommended oil viscosity and level, based on the experiences and data collected by our R&D team.

POSSIBLE ACCESSORIES : Cover for adjusting the fork leg

MODEL AVAILABLE FOR : Aprilia, Ducati, Honda, Kawasaki, MV Augusta, Suzuki, Triumph, Yamaha
